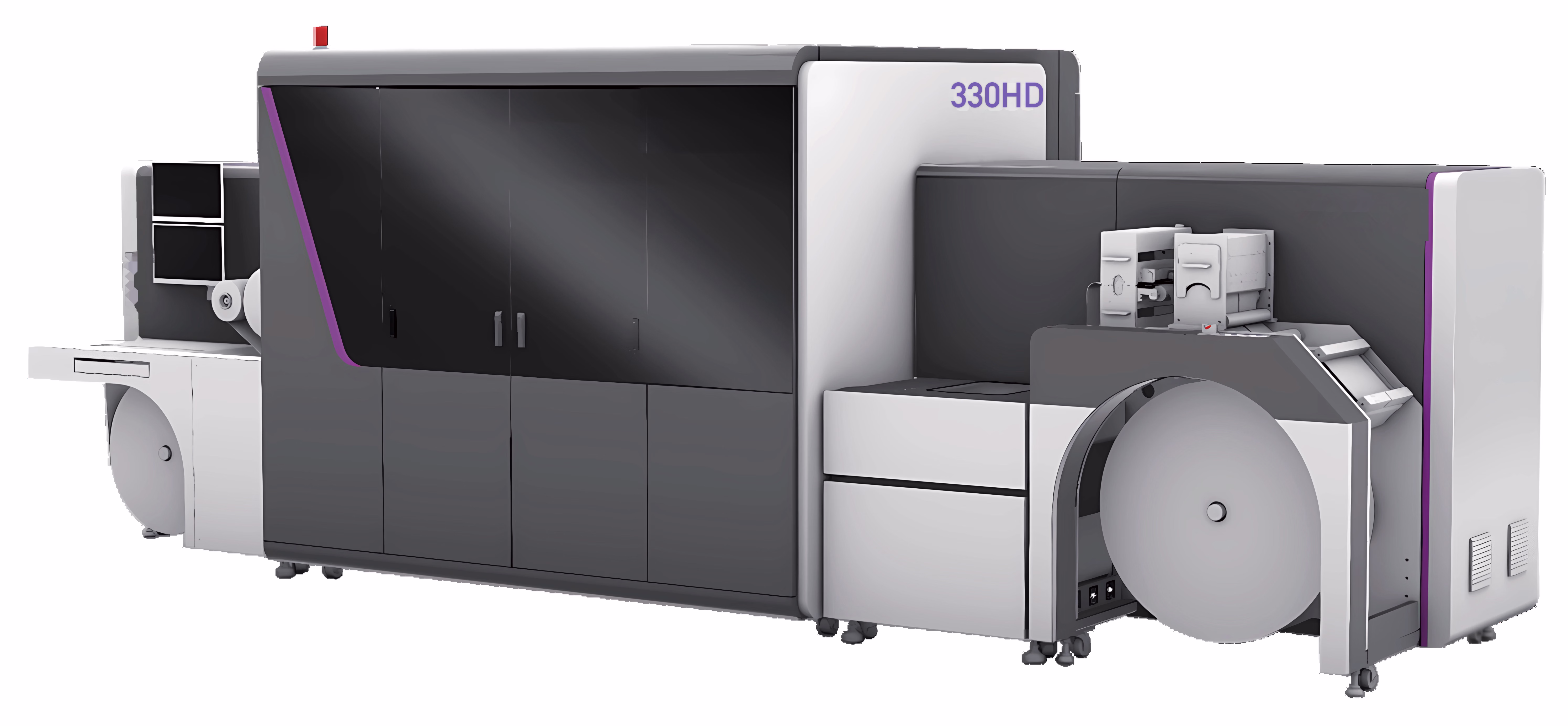

Digital label inkjet PRINTING MACHINE
DF-330-HD
Integrated roll-to-roll workflow for modern label manufacturing.
Digital label production is a connected roll-to-roll workflow where printing, finishing, and cutting operate as one integrated system.
Print Width
220 / 330 / 430 mm
Resolution
1200 dpi
PRINT Speed
Up to 50 m/min
INK
WCMYK + OVG
Production Capabilities
Wide-gamut Output
Supports up to 8-color wide-gamut printing for higher label quality and more accurate color reproduction.
Flexible Configurations
Offers roll-to-roll standard, digital print + embellishment, embedded modules and flexo-combined configurations.
Where It Fits In The Workflow
Related Learning Resources
Learn how this equipment works, fits into production, and creates better results.
equipment Overview
Introduction to key features and printing capabilities.
Workflow Demonstration
Shows how the equipment works in a complete production workflow.
Application Showcase
Real label applications across different industries.
Article
Digital Label Production Workflow Explained
Article
Choosing Label Materials for UV Printing
Workflow
Integrated Label Production Workflow
Typical Applications
Beverage & Alcohol
Beverage, alcohol and premium packaging labels.
Food & Fruit
Food, fruit and daily consumer product labels.
Pharma & Health
Pharmaceutical, health-product, energy-efficiency and payment labels.
Cosmetics & Care
Cosmetic, daily-chemical, personal-care and variable-data labels.
Equipment Highlights
Industrial Printhead Platform
High-speed industrial printhead platform with 1200 dpi precision and up to 80 m/min high-precision output.
Circulating Ink System
The intelligent positive-negative pressure circulation prevents sedimentation, stratification and bubbles with monitoring and predictive maintenance.
Automatic Nozzle Cleaning & Moisturizing
Automatic cleaning and moisturizing reduce maintenance downtime and improve long-term printhead stability.
Automatic Nozzle Height Adjustment
The automatic nozzle height adjustment system adjusts distance via high – precision sensors, maintains a 1mm golden distance to optimize printing and prevent nozzle scratching.
Synchronous Control
Micron-level position feedback and proprietary control algorithms improve registration, consistency and high-speed stability.
Powerful RIP & VDP
Supports multi-format jobs, end-to-end color management, printhead-level screening optimization, API interfaces and variable-data management.
Technical Specifications
|
Item |
|
|---|---|
|
Model |
DF-HD Series |
|
Printhead Brand |
Kyocera |
|
Printhead Type |
High-precision industrial piezoelectric printhead |
|
Print Width |
220 / 330 / 430 mm; other widths customizable |
|
Resolution |
1200 dpi,three-level grayscale |
|
Ink Color |
Standard CMYK,optional W+CMYK, CMYK+V, W+CMYK+OG+V |
|
Ink Drop Size |
2-6 pl |
|
Print Speed |
1200×1200 dpi: 80 m/min; 1200×960 dpi: 100 m/min; 1200×600 dpi: 160 m/min |
|
Material Width |
60-460 mm; customizable |
|
Ink Type |
Eco-friendly UV ink;5L per color |
|
Size（L*W*H） |
7040 x 2190 x 2500 mm |
|
Weight |
9101 KG |
|
Power Supply |
380V 50/60Hz, 90kW |
Compatible Materials
Paper Materials
Synthetic paper, coated paper, and other label papers
Film Materials
PET, PVC, PP, PE, BOPP, and other film substrates.
Foil & Specialty Materials
Aluminum, tin, and other specialty label materials.
